Movicon 11 SCADA



    Before starting Movicon 11, I would like mention "What Is SCADA", "Industrial Usage Of SCADA" and "Progea & Movicon 11" respectively.

What Is SCADA?

    SCADA (Supervisory Control And Data Acquisition) is a software system that works on a specific hardware in the industry for:

• Controlling (PLCs and RTUs for plant elements such as actuators, valves, final control sensors)
• Monitoring (Energy and plant production monitoring such as flow meters, energy analyzers, sensors)
• Reporting (Reporting the data of how much energy is consumed or how much raw material is loaded into a silo)
• Recording (Using database, important data is stored into electronically way)

    Levels for a control group at a manufacturing company can be seen below figure.

Fig: Levels

Fig: Function Levels Of A Manufacturing Control Operation

(Note 0: If you want more about the history of the SCADA, you can visit here.)

Industrial Usage Of SCADA?

    In most industrial organizations, SCADA systems are frequently using to make control easy, to know the production steps and productivity, energy monitoring for finding leaks from the pipes and energy efficiency. SCADA systems are backbone of many modern industries, including:

• Energy - Oil and Gas - Power
• Food and Beverage
• Manufacturing
• Recycling - Water and Waste Water

(Note 1: If you want to look into the examples of SCADA you can visit here.[Case Studies of Progea])

Progea & Movicon 11

  "Since 1991, Progea has been paving the way in the world of evolution Industrial supervision, representing a reliable and competent reference point for all its customers. Right from the start Progea chose to develop their company based on their product technology know-how, customer help services, quality and professionalism. The past twenty five years have seen the company grow to become a unique Italian reality in the International sector of SCADA/HMI software. ’Present in your future’ is the company’s slogan and mission to offer nothing but the best in advance technology. Progea would like to express their deepest gratitude to all their international customers and partners for choosing them."

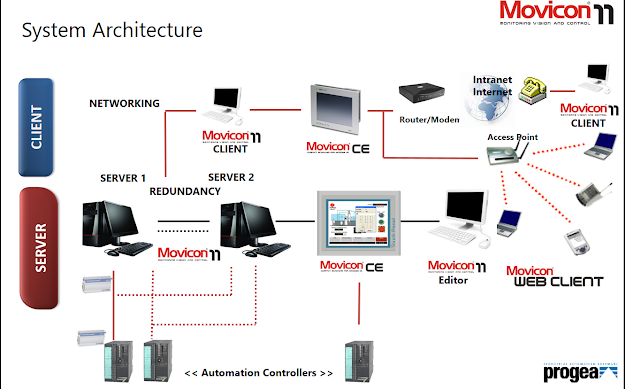

Fig: System Architecture

    Some remarkable properties of the  Movicon 11 can be listed below:

• Reports, trends, charts and data analysis.
• Alarm managements. (Alarm Dispatcher send notifications via SMS, e-mail and voice modem text-to-speech)
• Different kind of data recording tools such as SQL and MS Access
• Strong communication driver library
• Event and scripts
• Web Client
• Scalability and Openness
• Multi Language
• User and User Group
• Dynamic operations for symbols.(I am going to add an example of "Dynamic Animation" below)

Video: Dynamic Animation

   I would like to give example one of my project that we finished last year. This SCADA program was a kind of "controlling all production plant". The plant is made up of 21 silos and each of them has valves, motors and sensors. In addition there are three load cells installed in order to monitor the consumption of raw materials.

Fig: Plant Overview

Fig: Transferring Raw Materials

Fig: Reporting

    You can read all of  the case history from there.

   My next topic will be Movicon 11 SCADA and I will introduce my "Movicon 11 SCADA Getting Started" educational video. This video contains some important(and basic) topics that related to the Movicon 11. You can find the link from there and watch below. In addition to the below introduction video, you can find some of official project example from this site(Movicon KnowlegdeBase). It may gain to you more acceleration.

Video: "Movicon 11 SCADA Getting Started"

Thanks For Reading...

Okan Okumuş

19.06.2020
